Attack DPX Profi 80 kW

Attack DPX 80 kW Wood Gasification Boiler

With its power of 80 kW, the ATTACK DPX 80 kW wood gasification boiler is perfectly suited for larger properties. It is equipped with a user-friendly PID control system to optimize the combustion process, achieving very good emission values and high efficiency.

The control system automatically determines the optimal fan power based on measurement data such as boiler and exhaust gas temperatures. All parameters are accessible via an LCD display. Parameter adjustments can be made using buttons on the boiler control. Any error messages or warnings are indicated by LEDs. The boiler shuts down automatically after the fuel has been burned.

The Attack DPX can be equipped with an additional controller at any time, supporting the control of the buffer tank, solar system, or other heat sources in various configurations that can be adjusted according to customer needs.

Advantages:

Modern and innovative design
Tubular heat exchanger with movable turbulators
Long-term tested construction
Boiler efficiency 90.2 - 91.3%
Cleaning of the tubular heat exchanger via a lever

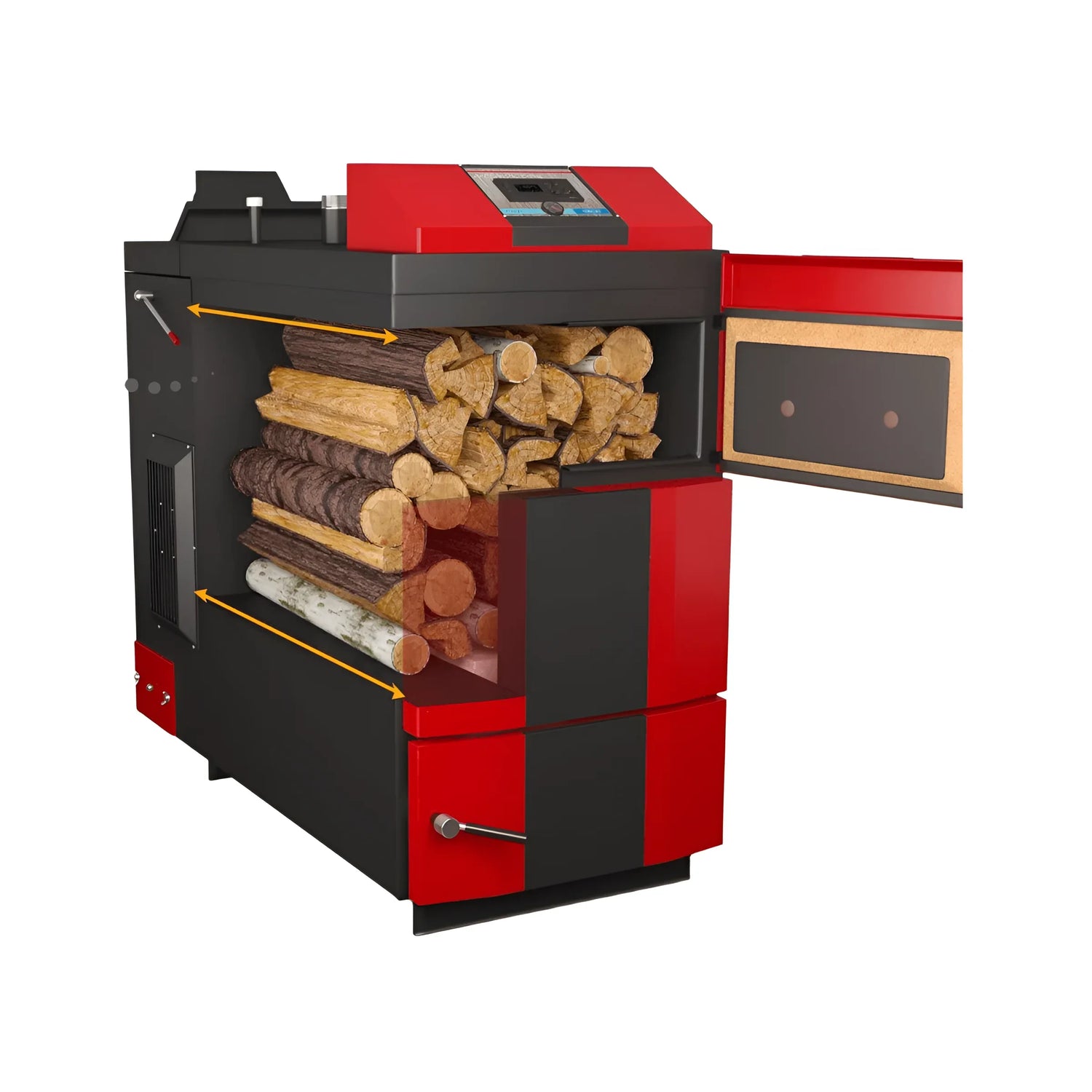

Large filling chamber allowing for continuous and long combustion of fuel per charge
Combustion of hardwood, softwood, wood briquettes
Low ash content
High customer comfort, reliable operation, easy operation and maintenance
Made of high-quality 6 mm thick boiler steel ensuring a long boiler lifespan

Technical Data:

Attack		DPX 80
Parameter	Unit	DPX80
Nominal Power	kW	80
Heat Exchanger Surface	m2	5.6
Filling Chamber Volume	dm3	440
Filling Chamber Door Dimensions	mm	292×542
Prescribed Chimney Draft	Pa	35
Max. Boiler Operating Pressure	kPa	250
Boiler Weight	kg	800
Exhaust Pipe Diameter	mm	200
Boiler Height "A"	mm	1575
Boiler Width "B"	mm	915
Boiler Depth "C"	mm	1890
Filling Chamber Length "D"	mm	1100
Ingress Protection	IP	21
Electrical Power Consumption	W	90
Boiler Efficiency	%	86.5
Boiler Class according to CO Emission (according to EN 303-5)	-	5
Exhaust Gas Temperature at Nominal Heat Output	°C	204
Exhaust Gas Mass Flow at Nominal Heat Output	kg/s	0.045
Maximum Noise Level	dB	65
Fuel Type	-	Wood pieces with a relative humidity of 12% - max. 20%, ∅ 50 - 150 mm
Average Fuel Consumption	kg/h	21.5
Wood Consumption per Season (approximate value)	-	1 kW = 0.9 m3
Maximum Log Length	mm	1000
Water Volume in the Boiler	l	250
Recommended Buffer Tank Volume	l	1000 - 2500
Voltage/Frequency	V / Hz	~230/50
Heating Water Temperature Adjustment Range	°C	65 - 90

*subject to technical changes | images may differ
