DW Neo black | double-walled chimney 5 - 10 meters

Product description

The DW Neo black chimney impresses with its modern design and functionality. Its double-walled construction provides reliable thermal insulation and optimal safety during operation. The product's understated elegance makes it an ideal choice for demanding applications.

Thanks to its high-quality workmanship and robust material, this chimney is not only visually appealing but also durable and efficient. The chimney blends harmoniously into any standard fireplace, thus supporting sustainable operation.

Technical details

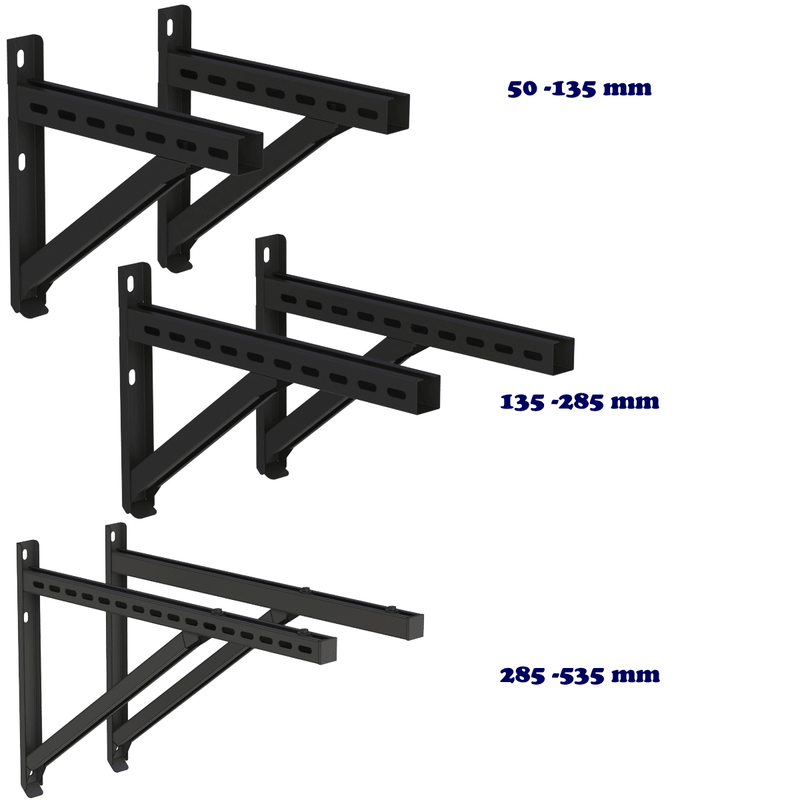

The chimney has a diameter of 150 mm, making it the ideal solution for various fireplaces. The wall clearance varies from 50 to 535 mm, allowing for flexible integration into existing systems.

The design is specifically tailored for negative pressure operation, allowing all standard fireplaces to be operated safely up to a temperature of 450°C. Anthracite coal is the only exception, in order to maintain the highest safety standards.

Assembly & Delivery time

The DW Neo black chimney is incredibly easy to install. Stylish clamps and connecting elements ensure a secure hold, allowing for quick and straightforward commissioning.

A short delivery time completes the offer and ensures that the product arrives promptly. This allows you to complete your project without long waiting periods.

Application areas

This double-walled chimney is ideally suited for all standard fireplaces that operate under negative pressure. In addition to conventional applications, the product also proves its worth in modern installations where efficiency and safety are paramount.

Whether in private or commercial premises – the DW Neo black is the right choice for a reliable and safe extraction system. It combines functionality and modern design at the highest level.

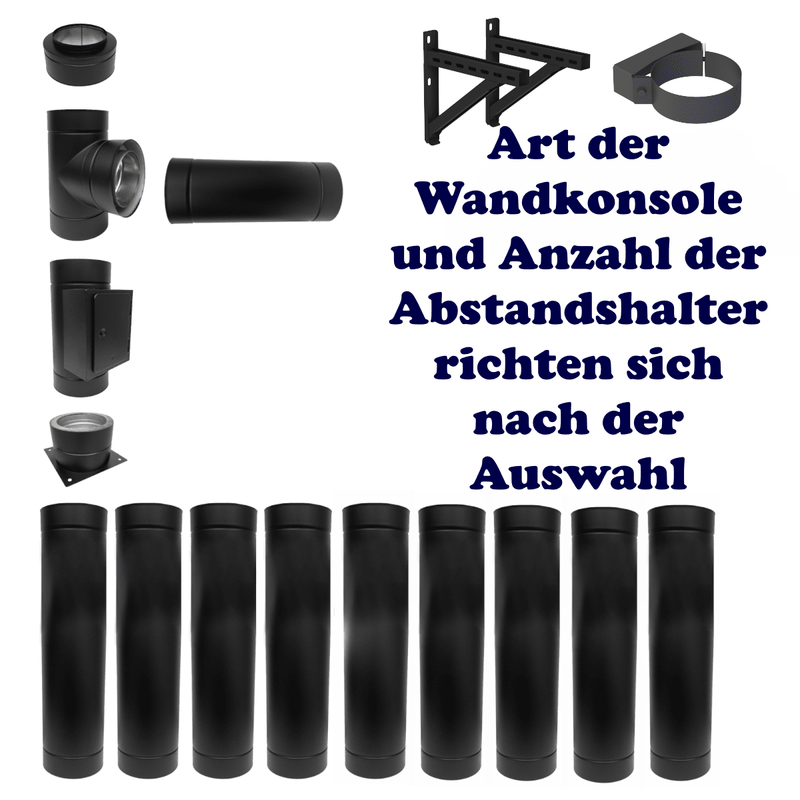

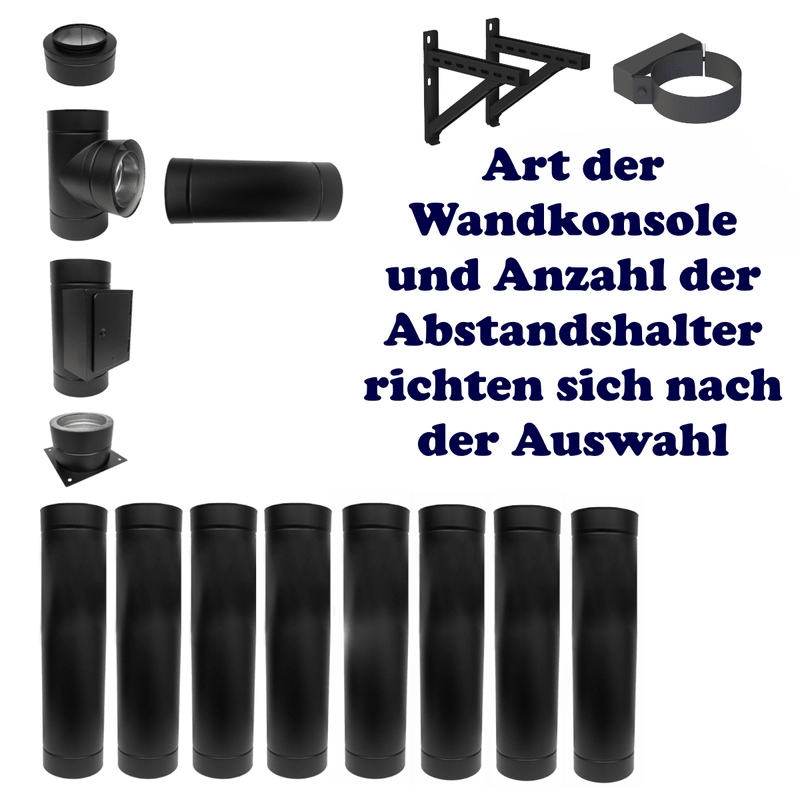

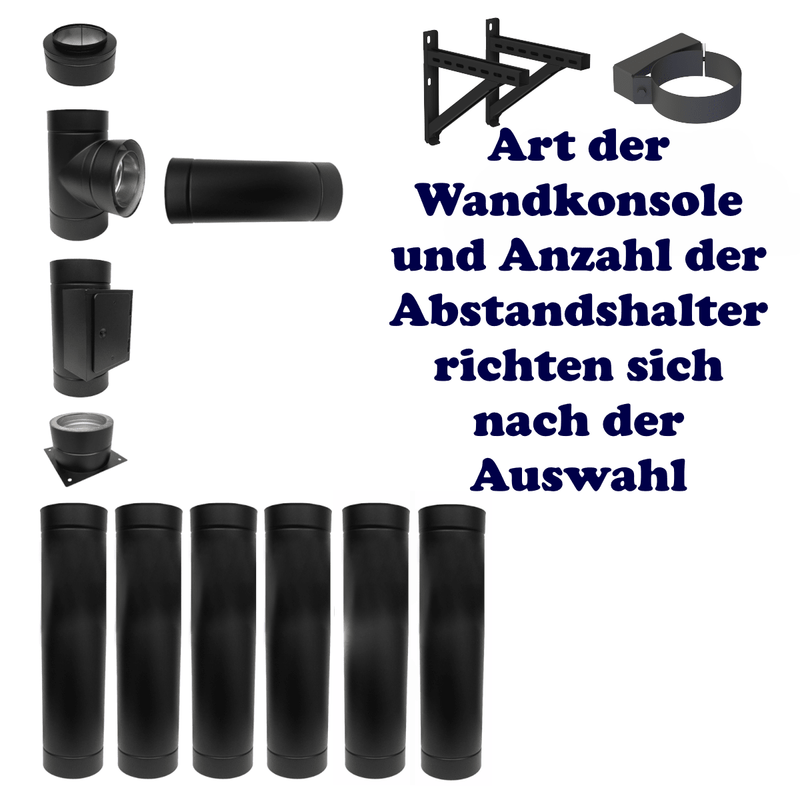

Scope of delivery

Included in all packages

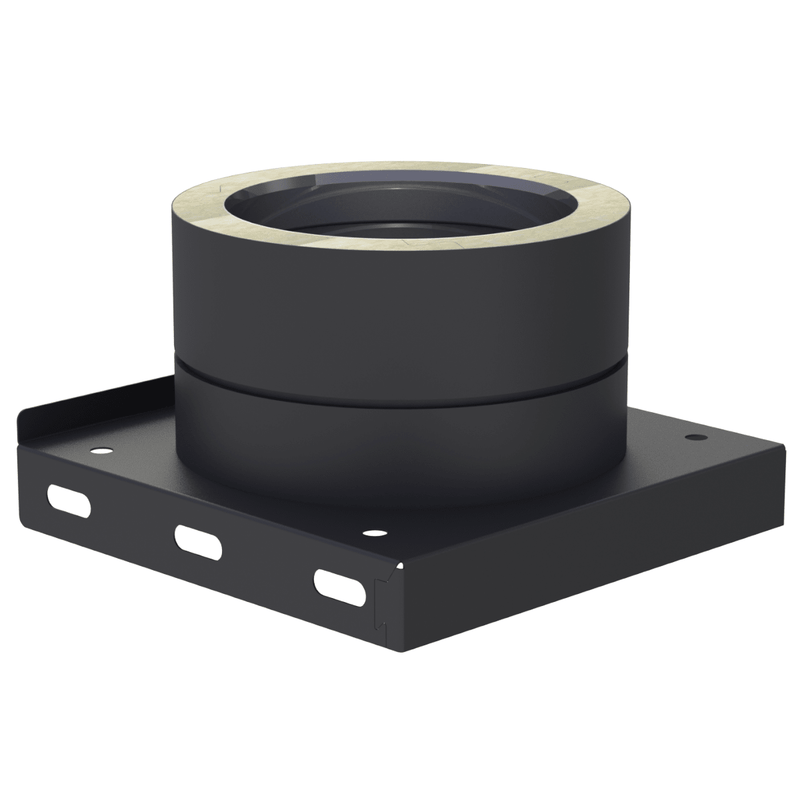

• 1 x Base plate with drain at the bottom
• 1 x wall bracket

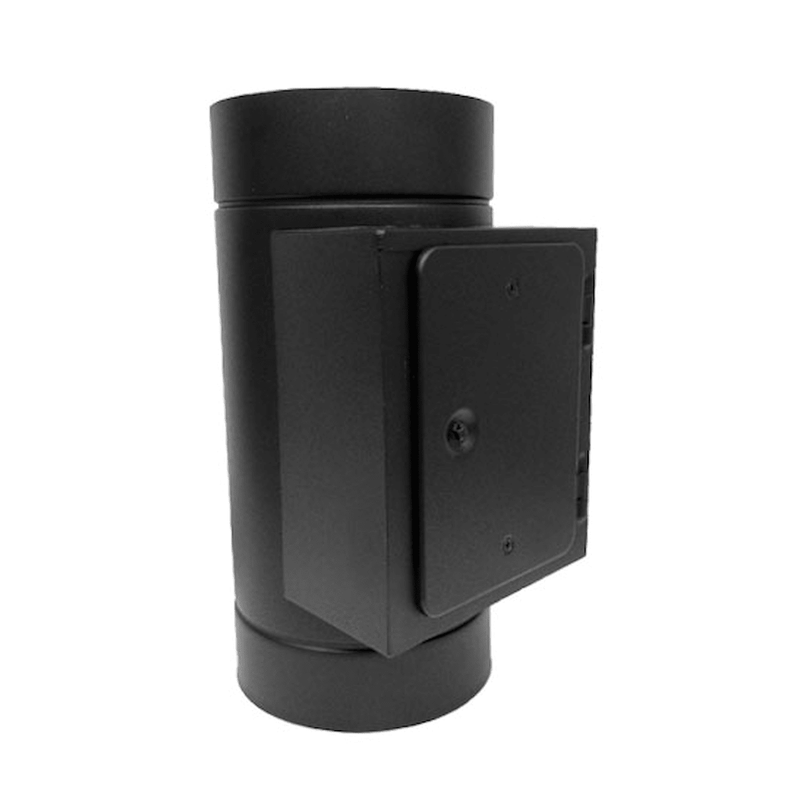

• 1 x cleaning opening with ES door

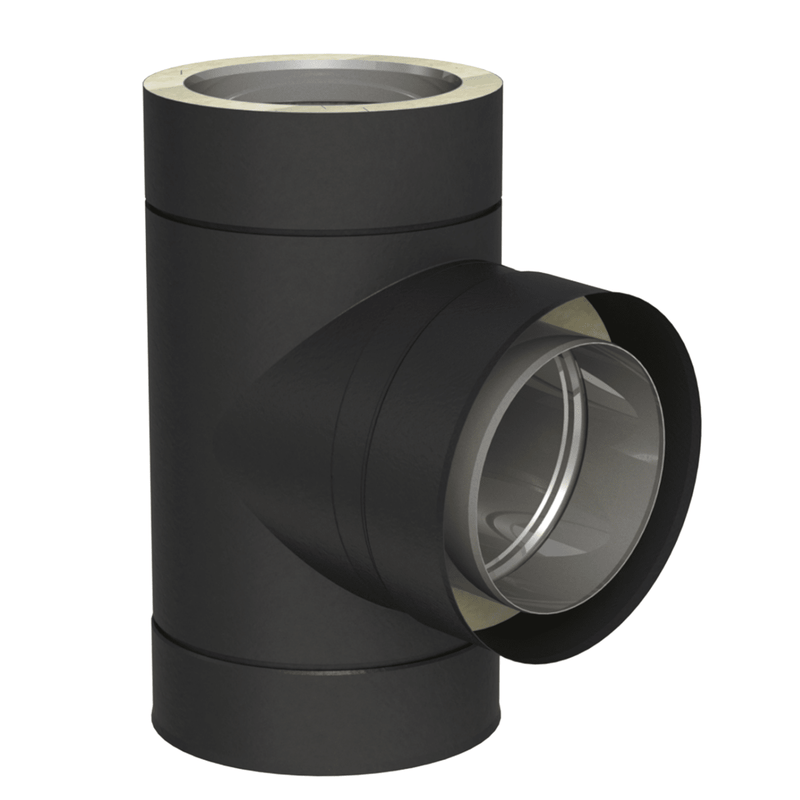

• 1 x combustion connection outlet with 90°

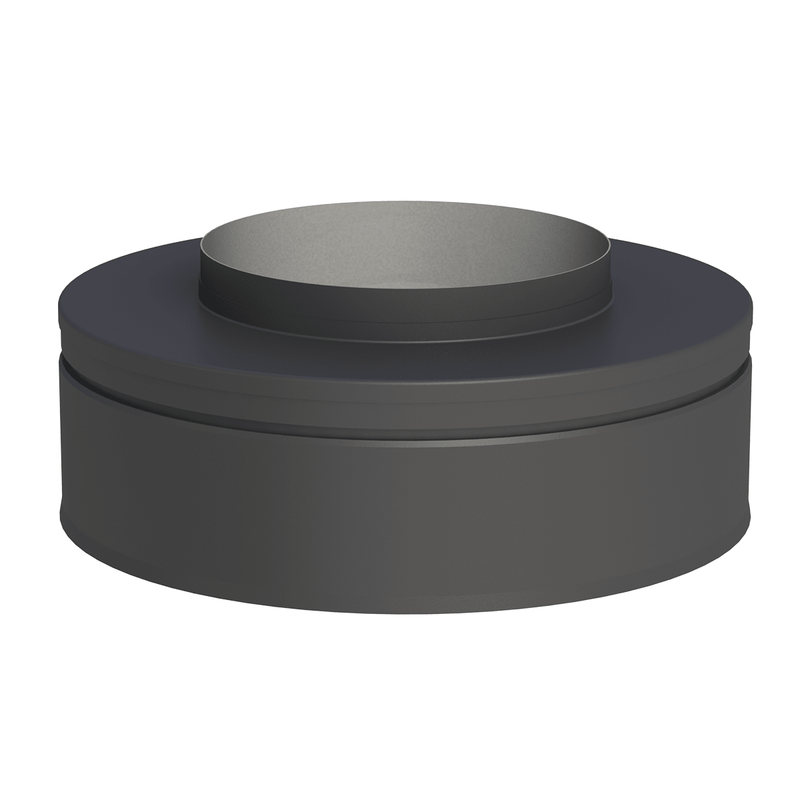

• 1 x Muzzle end

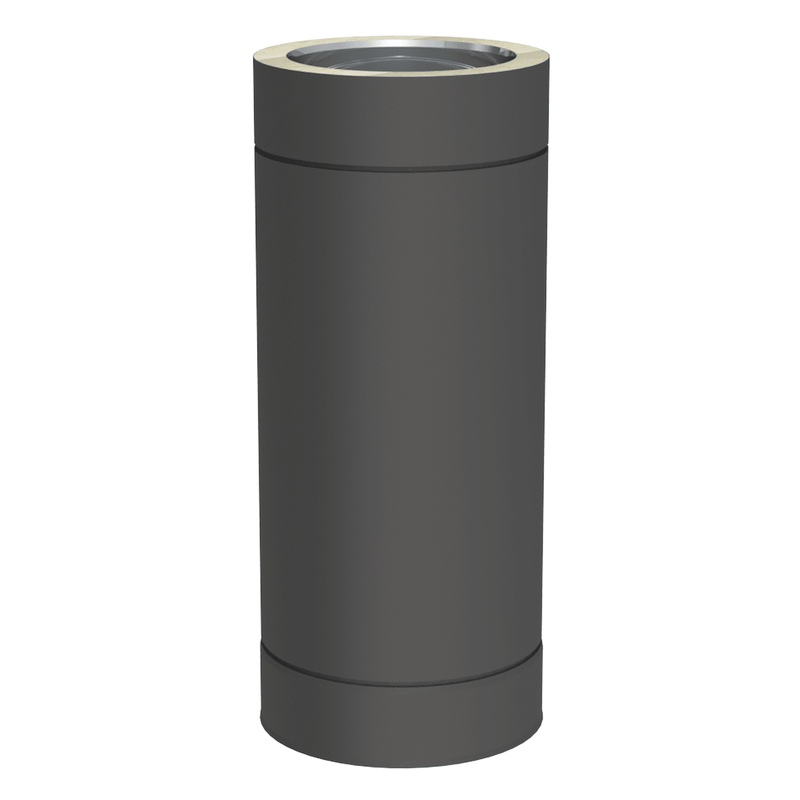

• 1 x 500 mm pipe with integrated double-walled liner
• All parts include the clamping band
• 1 x registration documents incl. sticker

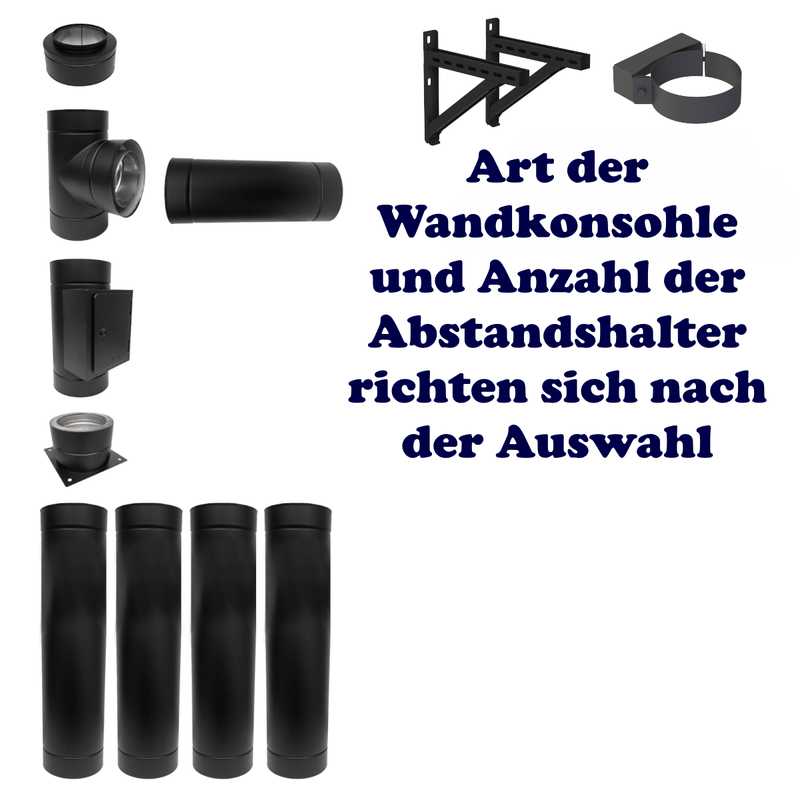

5 meters

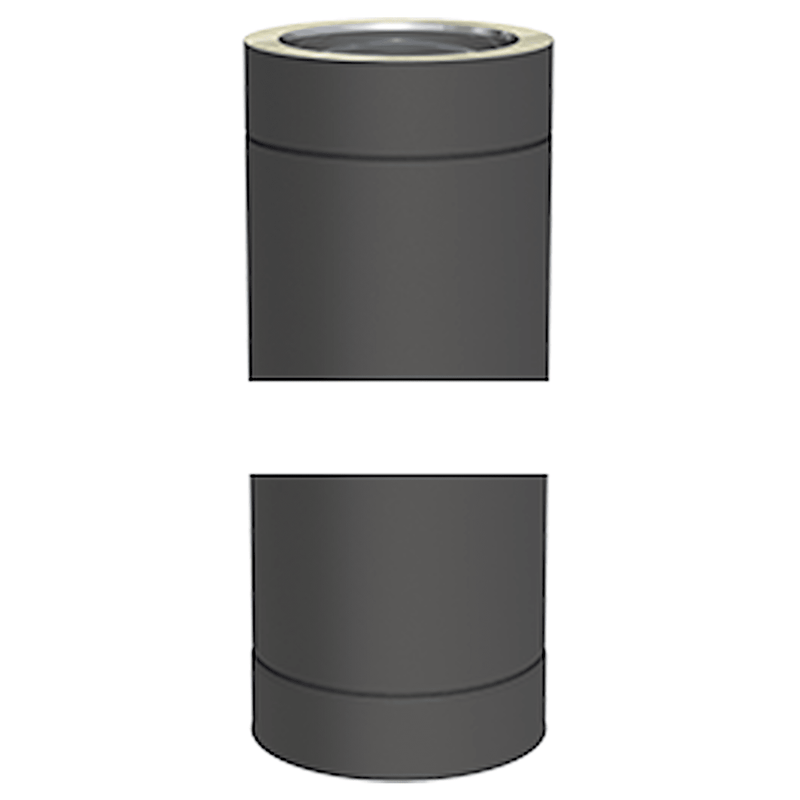

• 4 x pipe element 1,000 mm

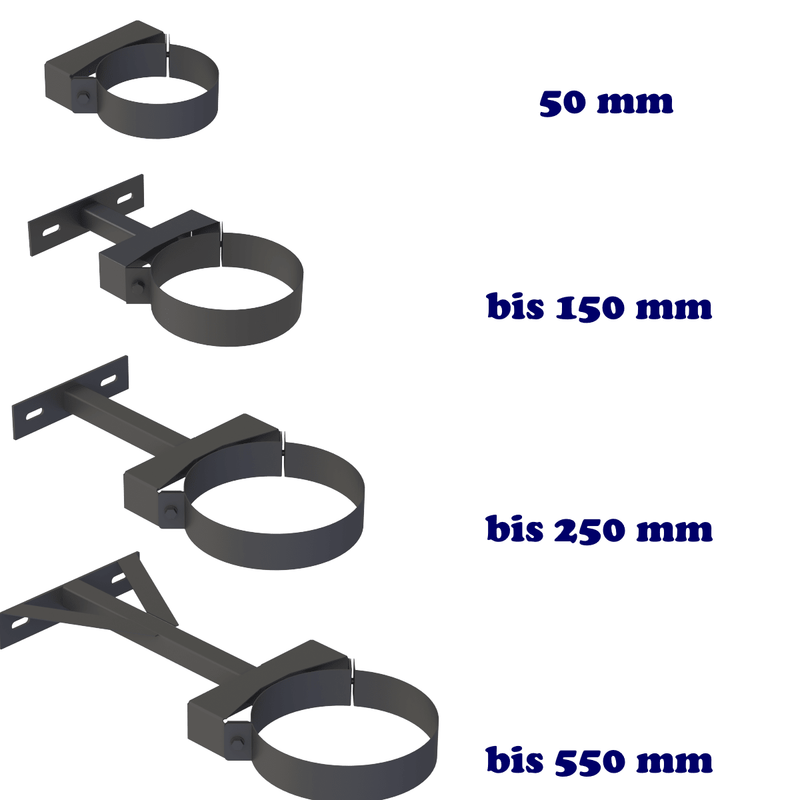

• 1 x spacer (of your choice)

6 meters

• 5 x pipe element 1,000 mm
• 1 x spacer (of your choice)

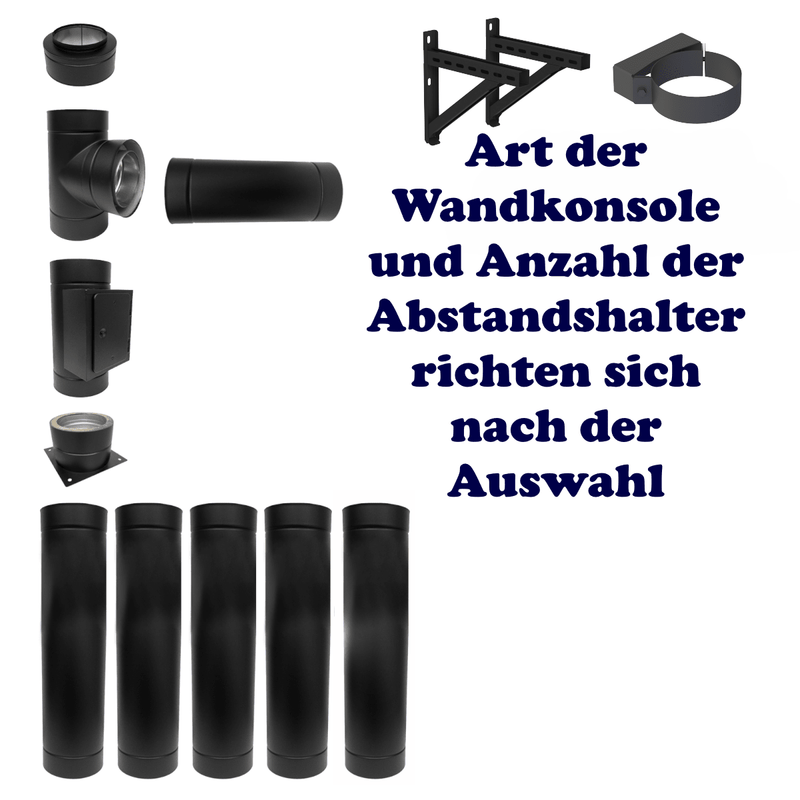

7 meters

• 6 x pipe element 1,000 mm
• 2 x spacers (your choice)

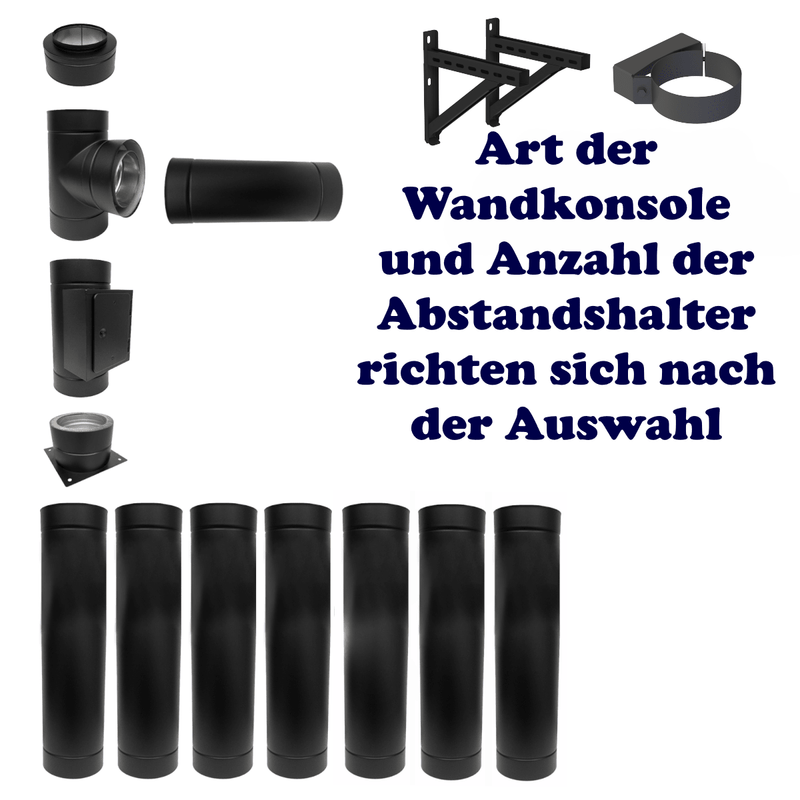

8 meters

• 7 x pipe element 1,000 mm
• 2 x spacers (your choice)

9 meters

• 8 x pipe element 1,000 mm
• 2 x spacers (your choice)

10 meters

• 9 x pipe element 1,000 mm
• 3 x spacers (your choice)

Download

• Assembly instructions
• certificate
• Declaration of Performance
