Atmos P14 Pellet Boiler
Atmos P Pellet Boiler with Log Wood Function (eligible for funding)
Funding notice!
The Atmos P series is eligible for funding from 25 kW without a particulate separator. The lower-output boilers only meet the requirements with a particulate separator.
For this reason, we only offer the eligible variants online.
If you prefer the variant without a particulate separator for the 14-21 kW boilers, or additionally the particulate separator for the P25 variant, please contact us and we will create an individual offer for you.
Request an offer
Atmos P14 Pellet Boiler

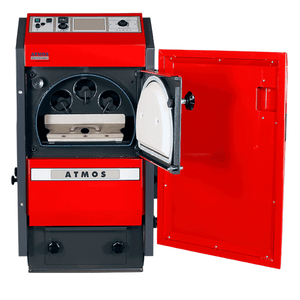

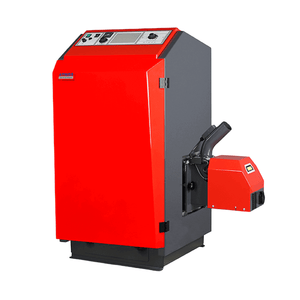

The boilers of the ATMOS P pellet boiler series – the P14, P21 and P25 – stand out as an automatic, compact, and low-maintenance, user-friendly pellet heating system that covers the heat demand of single-family and multi-family houses with a nominal heat output of 14–24 kW for 6-8 mm wood pellets. The boilers of the ATMOS P series are pure pellet boilers that operate autonomously or often in combination with a separate wood boiler. Depending on the installation situation, the burner can be mounted on the left or right side of the pellet boiler. This in turn offers the advantage that it is not in the way during cleaning and all surfaces are easily accessible to the user after opening the large boiler door. As with our other pellet boiler series, pellet feeding is carried out by means of a screw conveyor from a separate ATMOS silo, textile storage, or an on-site storage room. Depending on the application, we offer screw conveyors in lengths of 1.5 – 2.0 – 2.5 – 3.0 and 4.0 m. Since reliability is paramount for ATMOS, the screw conveyors are only designed as a straight-line system!
Equipment & Features
- features a large combustion chamber
- pellet boiler made of high-quality 6 mm boiler steel
- pellet burner can be mounted on the right or left as required
- the P series offers a very compact, space-saving design
- easily accessible flue gas heat exchanger
- very user-friendly and quick boiler cleaning
- the P series can be extended with automatic ash removal
- equipped with the ATMOS A25 or A45 pellet burner
- low power consumption
- combinable with ATMOS wood gasification boilers
- very high efficiency > 90% and best emission values
- the ATMOS P pellet boilers are eligible for BAFA funding
- unbeatable price-performance ratio
Technical data
- Energy efficiency class A+
- Boiler class 3
- Nominal heat output 14 kW
- Efficiency 90.1%
- Draft requirement 14 Pa
- CO content 169 mg/m³
- Dust emission 9 mg/m³
- Required fuel Pellets
- Flue gas temperature 127 °C
- Flue gas mass flow 0.011 kg/s
- Height 1207 mm
- Width 620 mm
- Depth 770 mm
- Flue pipe connection 150/152 mm
- Flue gas outlet 807 mm
- Weight 315.0 kg
Scope of delivery
- Atmos P14 pellet boiler
- Installation and operating instructions
Download
👉 Order commissioning right away!
With the "Commissioning by ATMOS" service, you ensure that your boiler is optimally set up and meets all technical requirements.
You can find more information about the process, requirements, and services in our article on [ATMOS commissioning].
