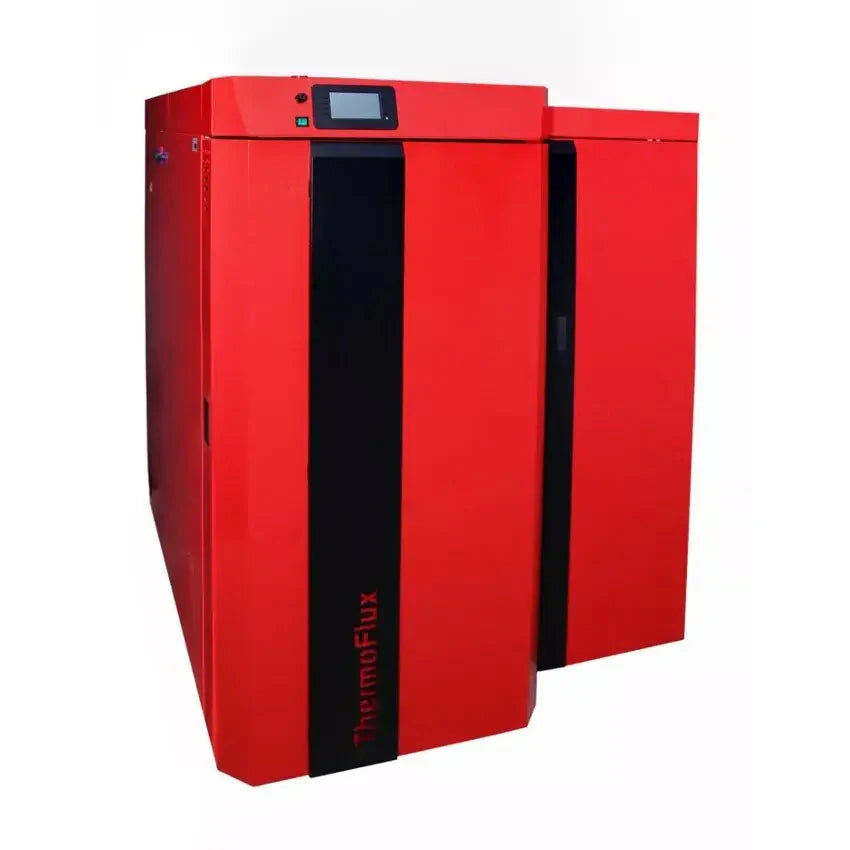

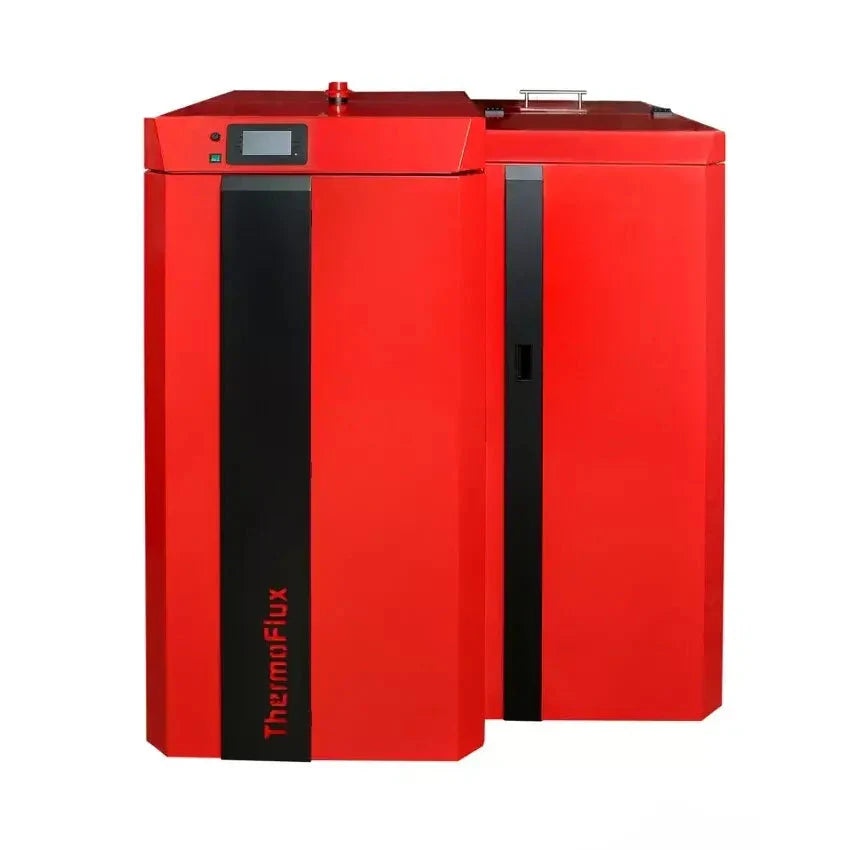

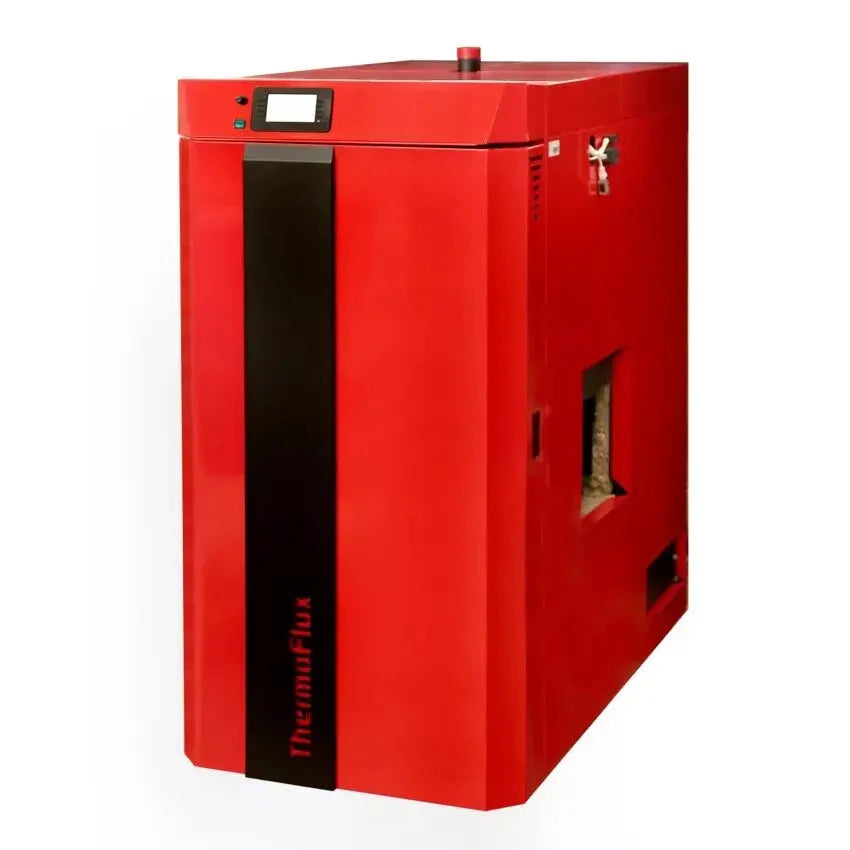

PID Logic Kombi: The perfect combination of wood and pellet heating
The PID Logic combination boiler is the ideal solution for efficient, comfortable, and environmentally friendly heating. With a nominal heat output of either 25, 35, or 45 kW, it is perfectly suited for small to medium-sized buildings. Thanks to touch controls, a lambda probe, and an efficiency of over 93%, you not only save energy but also protect the environment. The automatic switching between wood and pellet operation makes the boiler extremely user-friendly.
Efficient wood gasification: Maximum energy utilization
The PID Logic Kombi utilizes the proven wood gasification principle, ensuring virtually complete combustion of the fuel. The generously sized combustion chamber, which can accommodate logs up to 500 mm in length, achieves a burn time of at least 4 hours at full power. With lower heating loads, the burn time can even be extended to a full day, significantly increasing heating comfort.
The two-stage wood gasification process optimally utilizes the energy of the wood and reduces emissions to a minimum. This protects the environment and saves on fuel costs. It is important that the firewood has a residual moisture content of no more than 20% to guarantee maximum efficiency.
State-of-the-art pellet heating system

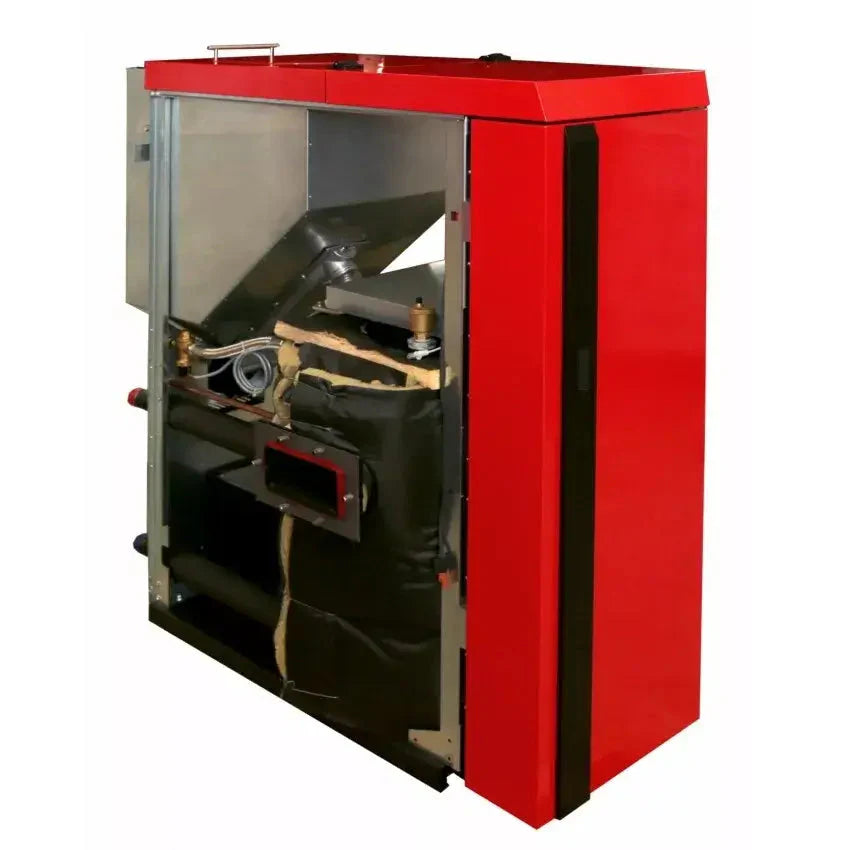

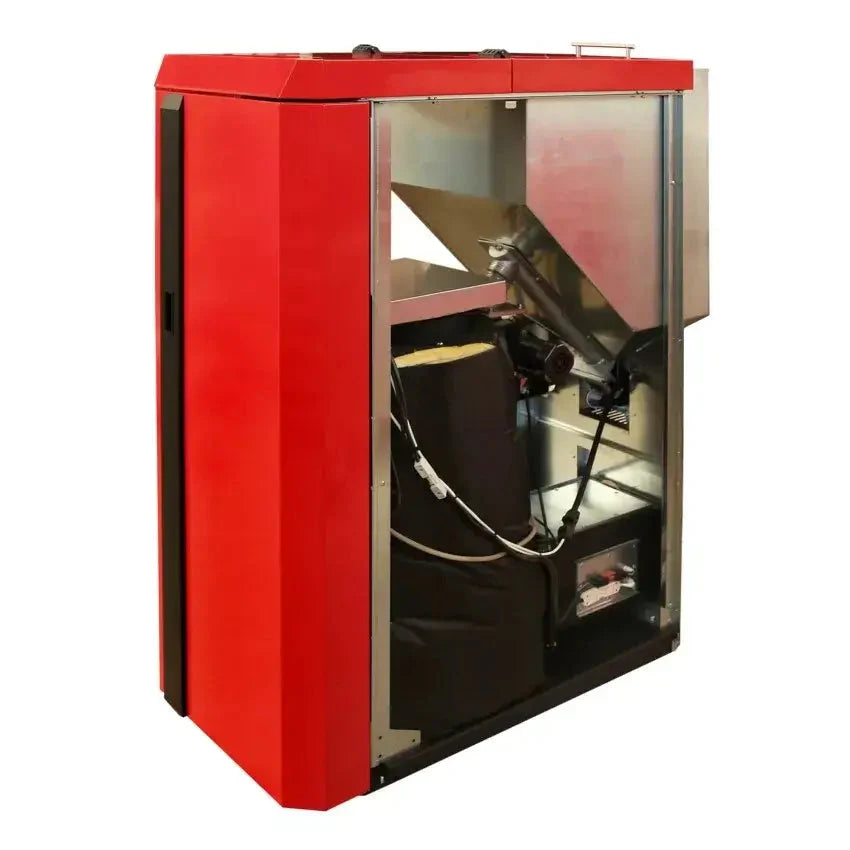

The pellets are burned in the separate right-hand section of the boiler. Pellets are considered an environmentally friendly energy source because they consist of wood shavings and are subject to strict quality standards (DINplus, ENplus A1). The integrated hopper offers ample space for pellets, with a volume of 80 to 148 liters depending on the model. Automatic filling via external conveying systems is available as an option.
The advanced combustion technology ensures clean pellet utilization with minimal emissions. This makes the PID Logic Combi an ideal complement to or alternative to wood heating systems and increases flexibility in heating operation.
Automatic switching between fuel types
A highlight of the PID Logic Combi is the automatic switchover from wood to pellet operation. As soon as the logs in the combustion chamber have completely burned, the pellet burner automatically takes over the heating process. This ensures a constant heat supply without the need for manual intervention. This function provides maximum ease of use and uninterrupted heat delivery.
Ease of use thanks to innovative touch control
The PID Logic Kombi is intuitively controlled via a modern color touchscreen. All functions are clearly displayed here. The integrated lambda probe continuously measures the oxygen content in the exhaust gases and regulates the air supply to ensure optimal combustion – for both wood and pellets.

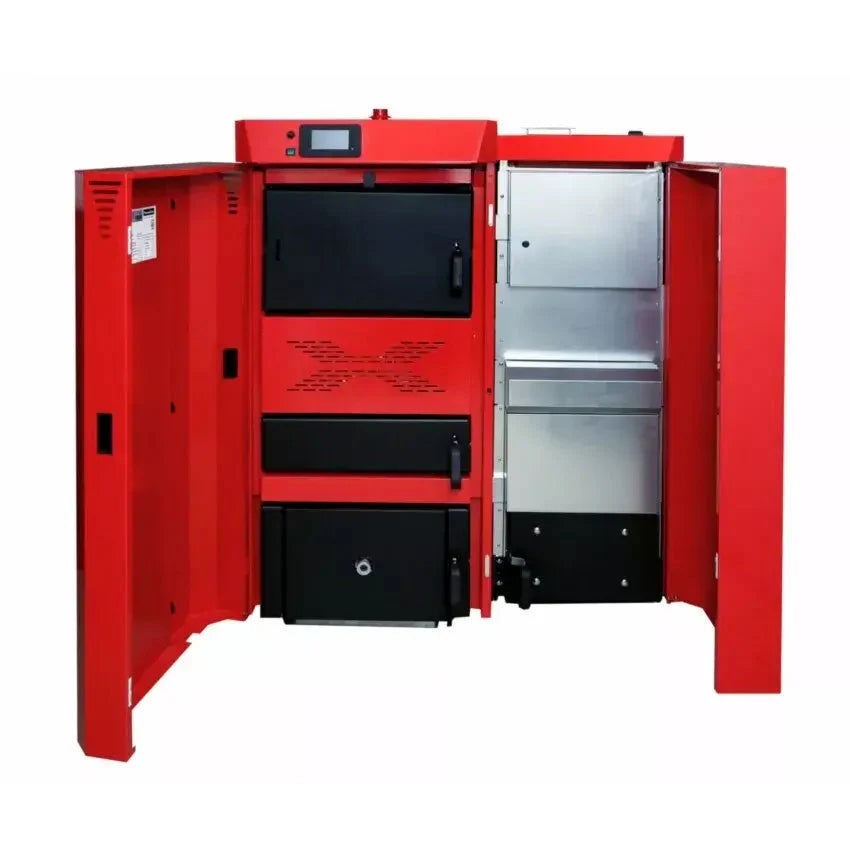

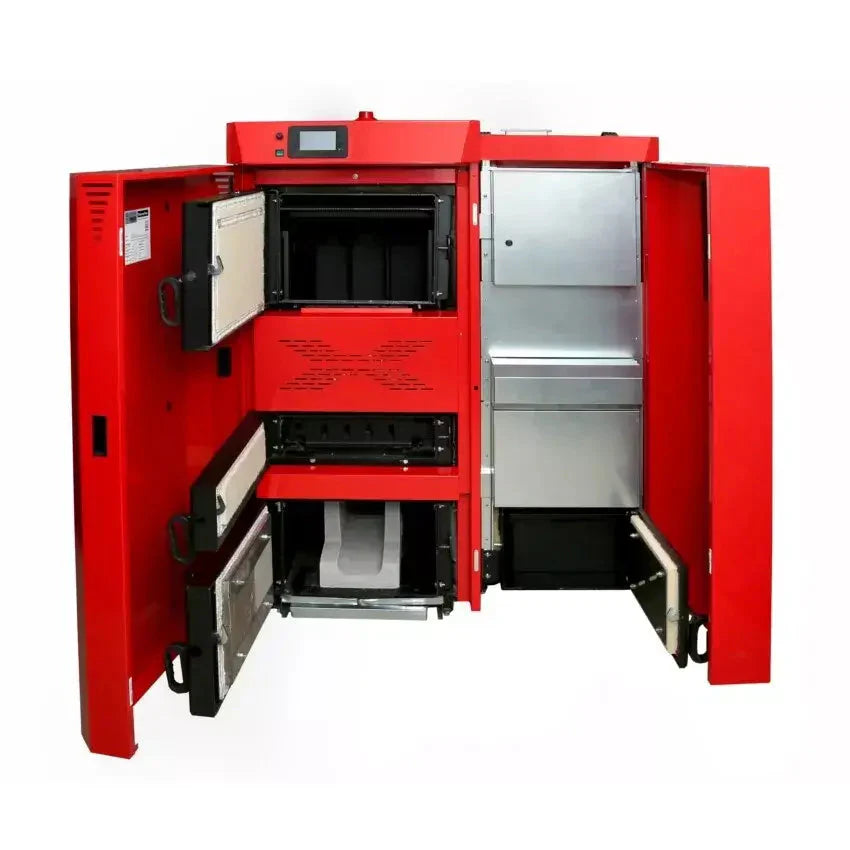

Additional features such as an exhaust gas temperature sensor and automatic grate cleaning significantly reduce maintenance and increase the boiler's efficiency. The combustion chamber is easily filled through a large loading door, and cleaning is straightforward via a separate door.
High safety and reliability
Safety is paramount in the PID Logic Combi boiler. Equipped with a safety temperature limiter (STB), a safety heat exchanger, and a thermal relief valve, the boiler ensures maximum operational reliability. In the event of a temperature rise above the limit or a power outage, the protective mechanisms reliably intervene to regulate operation or protect the boiler.
Even in unforeseen situations, the PID Logic Kombi remains flexible and safe in operation, making it a reliable heating solution for any home.
An economical and environmentally friendly choice
With an efficiency of over 93%, the PID Logic Kombi is among the most efficient boilers in its class. Its pyrolytic wood combustion saves more than 85% fuel compared to conventional wood-fired boilers. Its exceptionally low emissions meet the requirements of the stringent German Federal Immission Control Act (BImSchV) Stage 2 and the highest boiler class 5 according to EN 303-5:2012.
The PID Logic Kombi thus creates a sustainable link between modern heating technology and ecological responsibility. The ability to use both wood and pellets in a resource-efficient manner makes it an economical and future-proof investment.
Modular expansion options
The PID Logic Kombi can be individually adapted to your needs. Optional modules, such as a GSM alarm module or controllers for up to eight heating circuits, significantly expand its range of applications. The pellet feed can also be adapted to your specific requirements using augers, vacuum systems, or larger storage containers.
This flexible system design allows you to optimally integrate the boiler into your existing heating structure and to easily implement future expansions.
Technical details at a glance

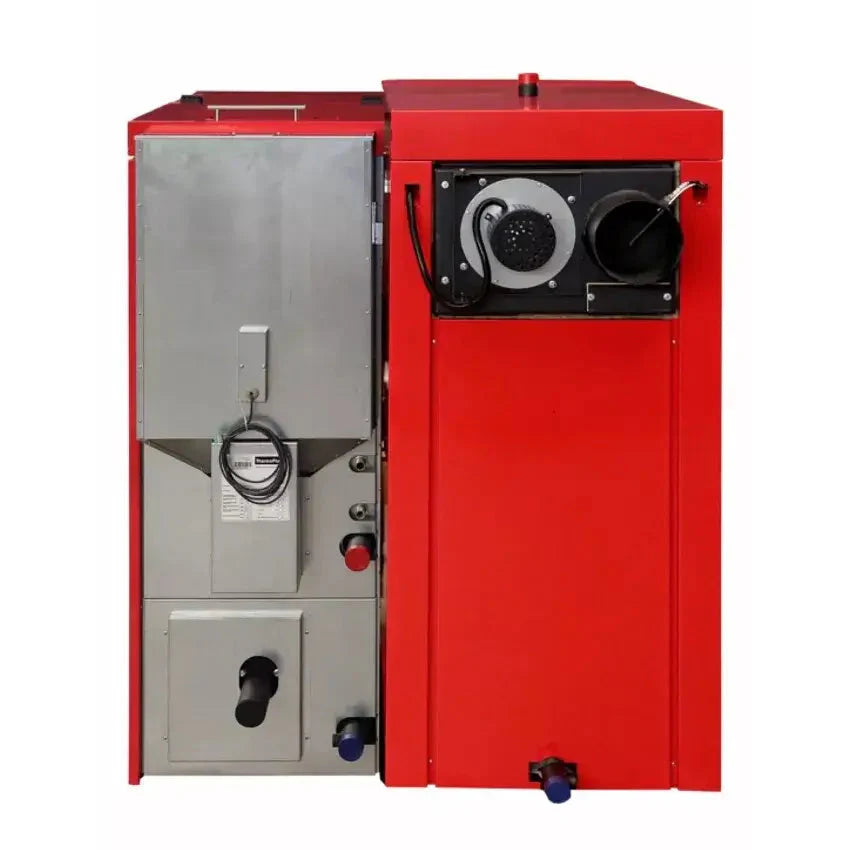

The PID Logic Combi boiler is available in several output sizes (25, 35, and 45 kW) and features standardized connections for flow, return, and drain. The flue outlet diameter varies between 150 mm and 180 mm, depending on the output. Thanks to TÜV and CE certification, the boiler meets all relevant safety and quality standards.
All installed components are durable and reliable, making the PID Logic Kombi a stable and long-term usable heating solution.
Why the PID Logic Combo is the right choice
In summary, the PID Logic Kombi combines state-of-the-art heating technology with maximum comfort and high environmental compatibility. It not only offers powerful wood and pellet combustion, but also impresses with its ease of use, safety features, and cost-effectiveness.
With its flexible use for two fuel types and automatic switching, this boiler is perfect for households that value reliable heat supply and efficiency. Choose the PID Logic Combi today and benefit from a sustainable and future-proof heating solution!
Technical data
- Energy efficiency class A+
- Boiler class 5
- Nominal heat output 45 kW
- Performance area
- Wood: 22.5-45 kW
- Pellet: 13.5-45 kW
- Efficiency 90.6%
- Traction requirement 10 Pa
- CO content
- Nominal load: 60 mg/m³
- Partial load: 82 mg/m³
- Dust emission 13 mg/m³
- Maximum firewood length
- Wood (450-550) x 70 x 50 mm
- Pellet d=6 mm
- Exhaust gas mass flow rate at nominal output: Wood 0.027 kg/s | Pellet 0.0385 kg/s
- Minimum output: wood 0.014 kg/s | Pellet 0.0121 kg/s
- Height 1350 mm
- Width 1025 mm
- Depth 1385 mm
- Flue pipe connection Ø 160 mm
- Weight 875.0 kg
Scope of delivery
- Thermoflux PID Logic Combi 45 kW
- Assembly & User manual
